| Items | Lowbed semi trailer 1 | Lowbed semi trailer 2 |
| Loading Capacity | 30-40 tons | 60-80 tons |
| Axle | 2/3 pieces, FUWA/BPW axle | 4 pieces, 13T FUWA/BPW axle |
| Tyre | 8 /12pieces, 235/70R17.5/8.25R20 | 16 pieces, 10.00R20/11.00R20 |
| Dimensions(LxWxH) | 12500 to 16000mm x 3000 x 1550mm | |
| Tare weight | 5.5 tons to 8 tons | |
| Axle spacing | 1310mm | |
| Rims | 8.5-20, 9.0-20 | |
| Suspension System | Leaf spring suspension / air suspension | |
| Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | |
| Main Beam | Height 500mm Q345 | |
| Chassis | upper 20mm, lower 20mm. Mid web 12mm | |
| Ramp | 1 pair of heavy duty ramp(leaf spring type or hydrualic ramp optional) | |
| Kingpin | 2’ or 3.5’ interchangeable | |

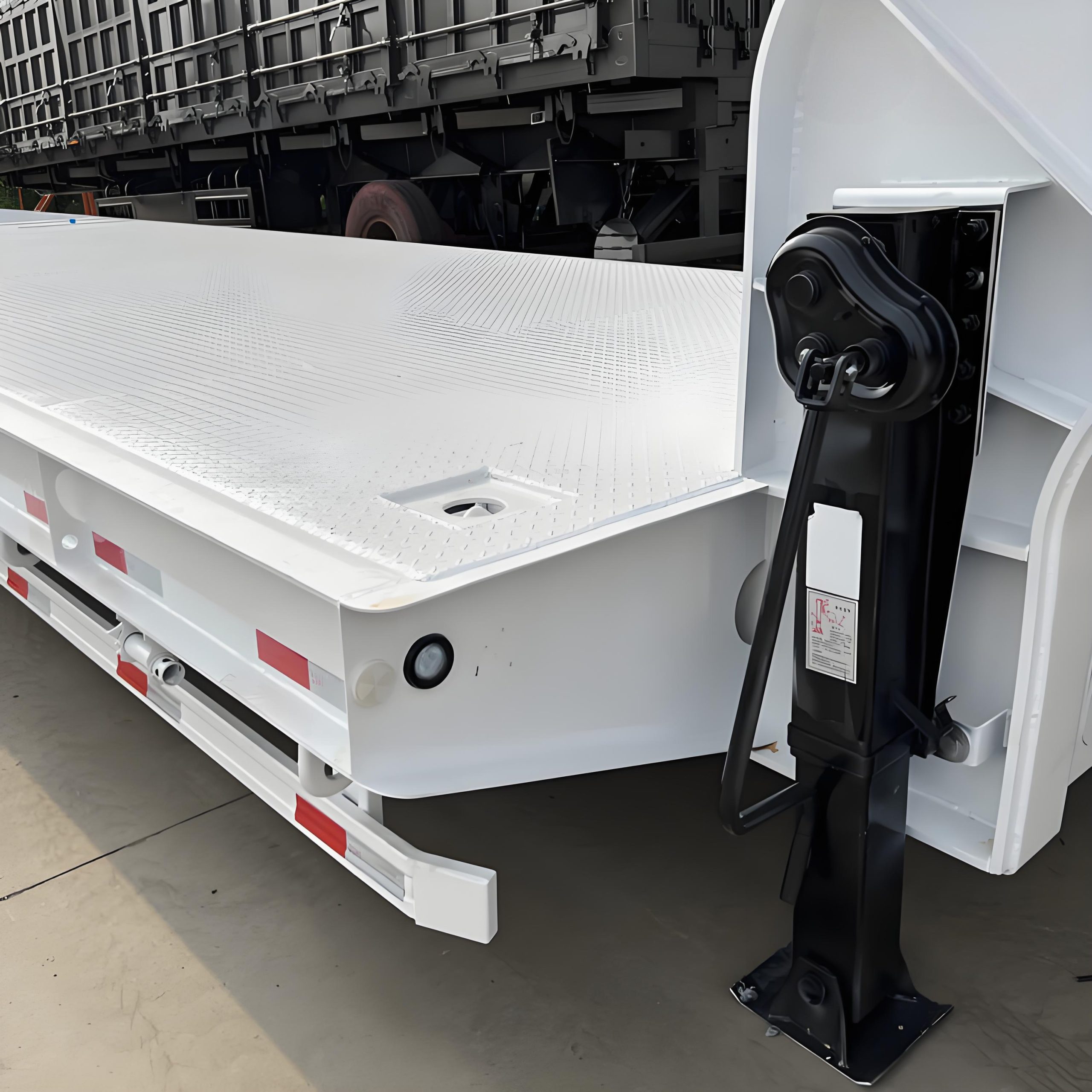

| Landing Gear | 28 Tons , Two speed manual operation | |
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | |
| Lights and Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
| Painting |
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available |
|
| Tool Box | One tool box with a set of standard trailer tools | |
| Spare Tyre Carrier | One piece or two pieces | |
