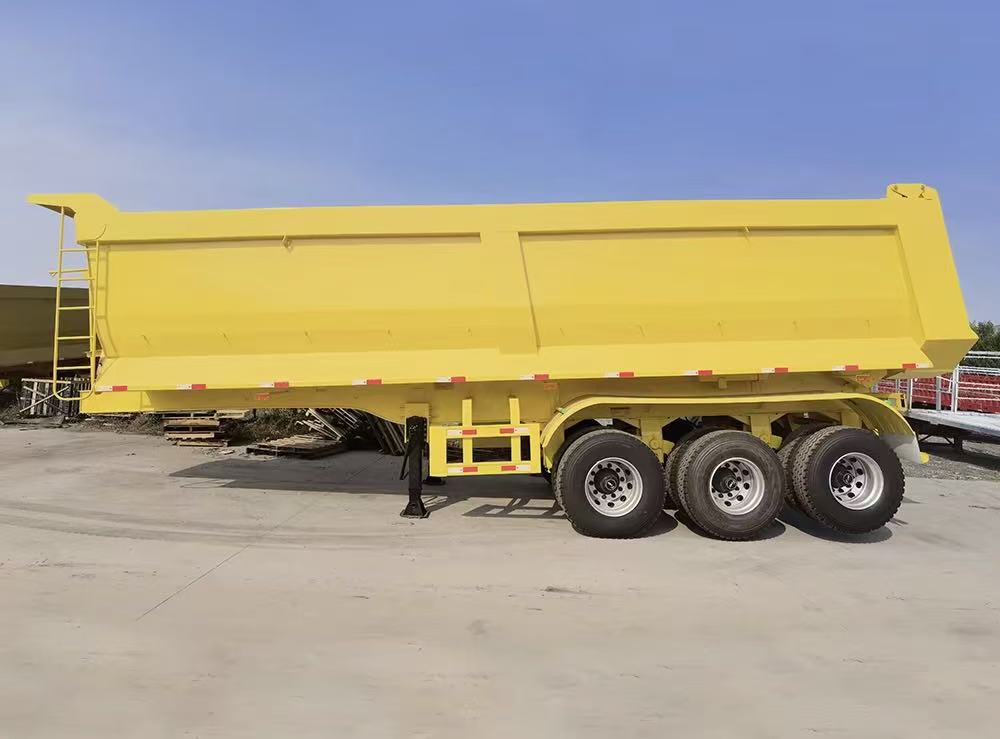

3 Axles rear dump semi-trailer

半挂车

自卸车

牵引车

Leave Your Message

Reinforced frame and high-quality axles support a max load of 40 tons, handling coal, ore, or construction materials efficiently. Reduces round trips and boosts operational efficiency.

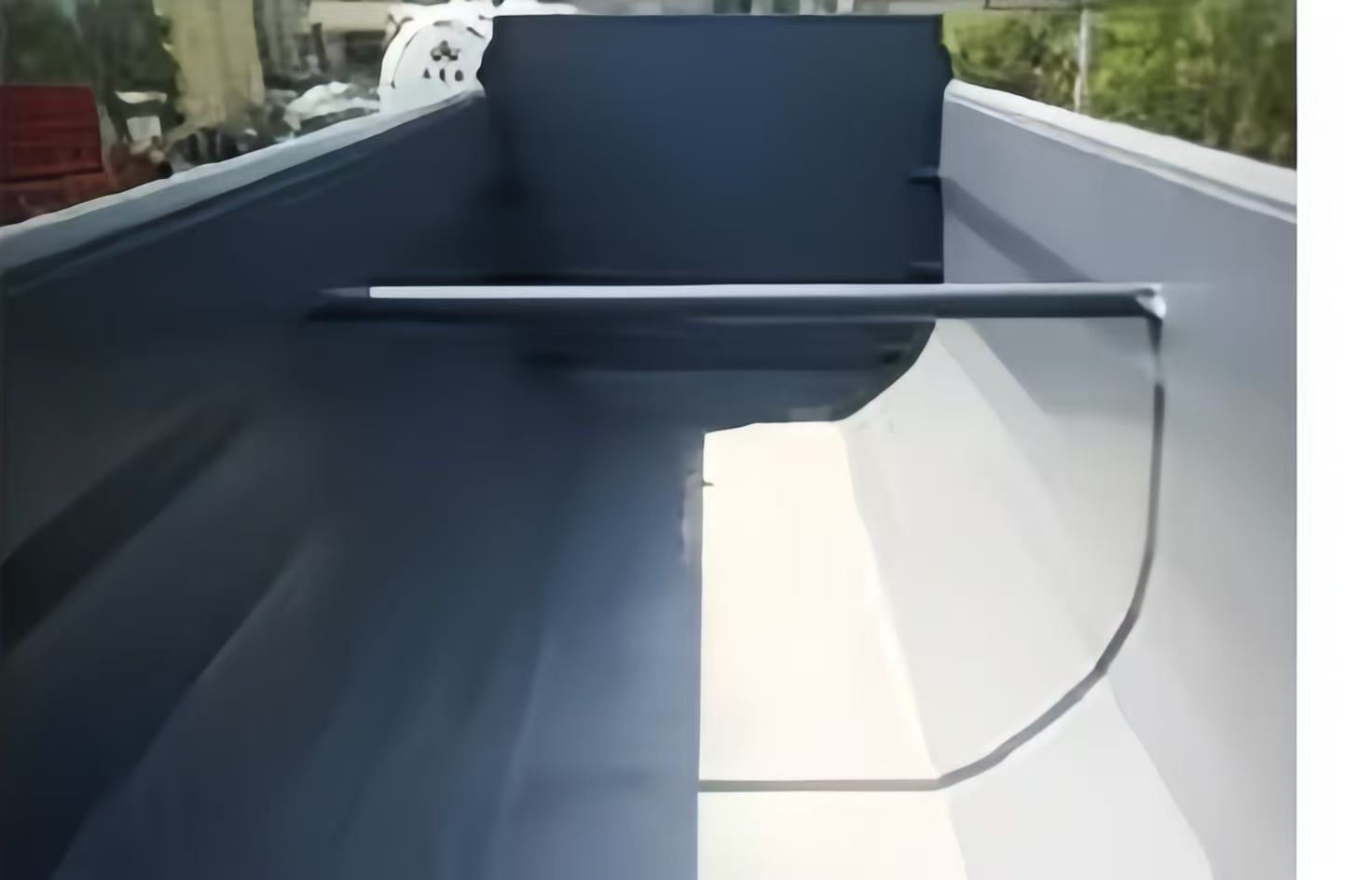

High-strength steel frame resists deformation; narrow-front, wide-rear carriage eases dumping and prevents rollover, enhancing safety under heavy loads.
Powerful engine delivers steady torque, performing well on flat roads, mountain slopes, or muddy terrain—no efficiency loss from road conditions.

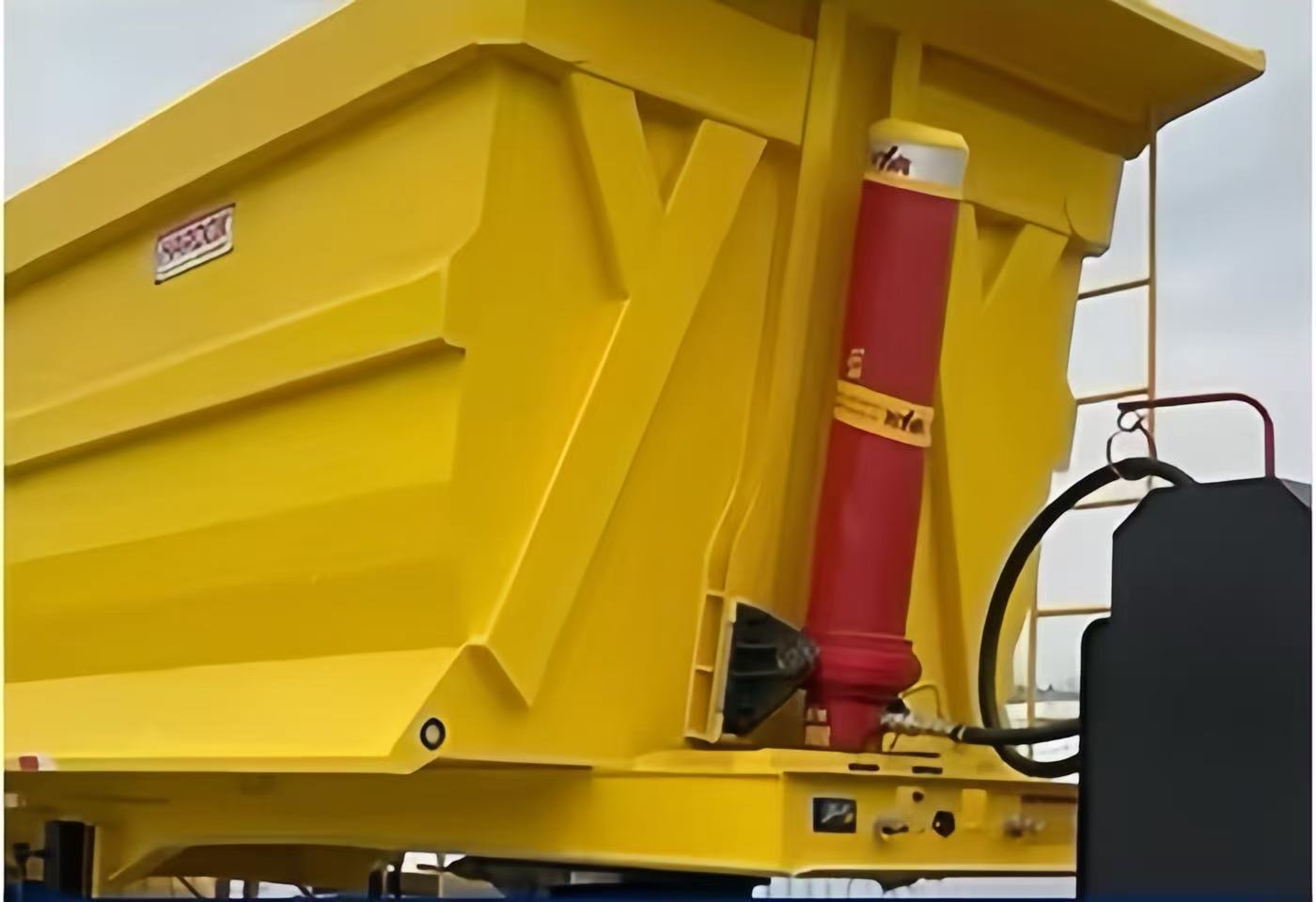

Advanced hydraulic system enables quick, smooth carriage tilting. Saves unloading time/labor and shortens transport cycles for higher profits.
Precise steering (small turning radius) for narrow spaces; reliable, responsive brakes—ensures safe, flexible driving in complex environments.
Built to international standards with strict inspections (raw materials to assembly). Tested for durability, adapting to harsh operating conditions.
Spacious interior, ergonomic driver’s seat (reduces fatigue); intuitive controls—easy to operate, boosting work efficiency.

Dimension(Optional)	Axle No.	Rated Load (kg)	Tire No.	Tire Size
By Customer Needs	2	40000	8	825R20 1000R20 1100R20 1200R20 12R22.5
	3	60000	12
	4	80000	16

Wheel Base (mm)	1310
leaf-spring Pcs	10
Axle	13/16/18 T

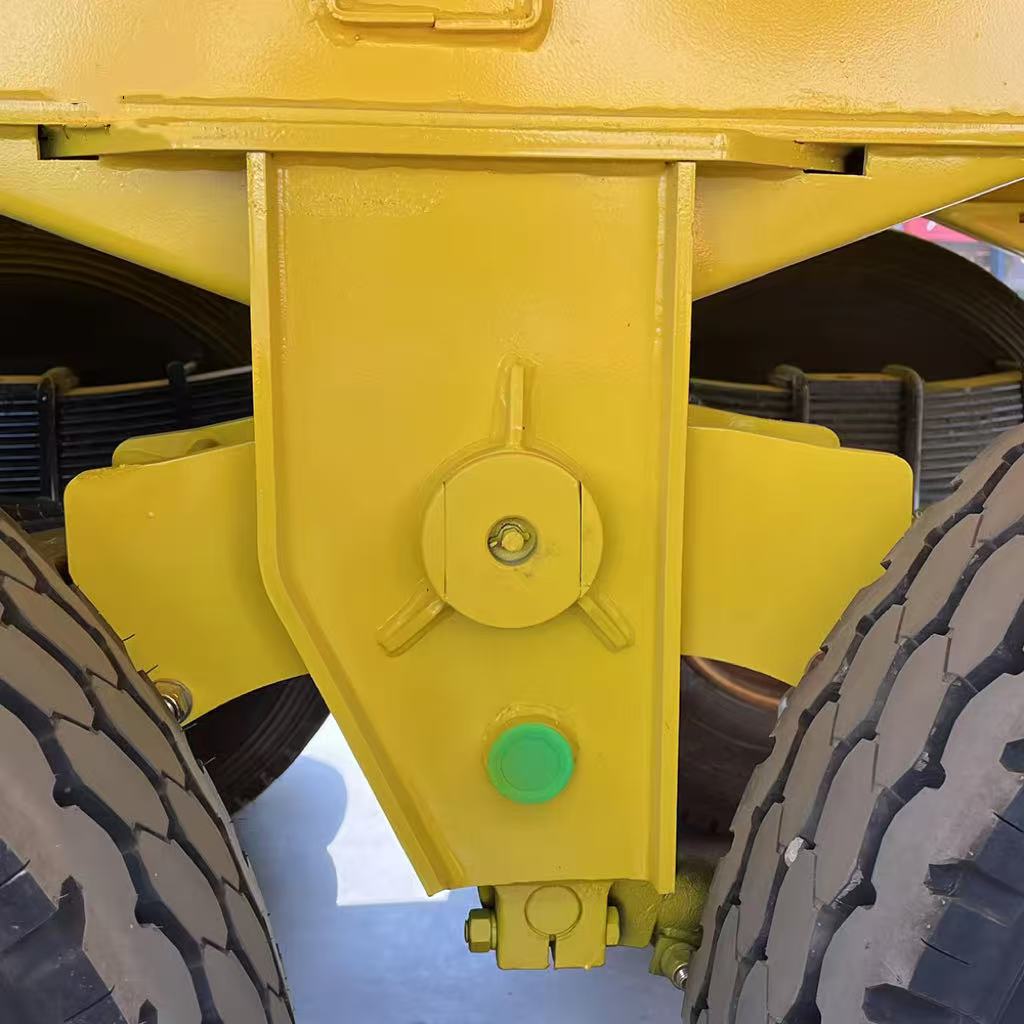

Suspension	Heavy Duty Mechanic Suspension with Leaf Springs
Main Beam Material	Q345B manganese plates, automatic submerged arc welded
Brake System	Dual line braking system with automatic braking system/chambers
Brake Air Chamber	Double Model
Kingpin	2′ or 3.5′ Interchangeable
Landing gear	28T loading capacity with 80T static lifting capacity.
Floor Thickness	6mm
Body Thickness	5mm
Brake System	Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber	Four double and two single chamber
Electrical System	24V, 7core socket, lights according to European standards.
Mainbeam Size	Upper plate			14mm
	Lower plate			16mm
	Mid Web			8 mm
	Height			500-520mm
