3 Axles skeleton semi-trailer

半挂车

自卸车

牵引车

Leave Your Message

Imported high-strength steel + special welding (20% higher strength), full load 40 tons for ore/building materials, meeting African heavy-duty needs.
Durable structure + universal core parts (easy maintenance in Africa), 15%-20% higher 5-year residual value than same-age models, cutting asset losses.
Aerodynamic body + low-rolling-resistance tires (15% less wind resistance, 12% less rolling resistance), 10%-15% lower fuel consumption for Africa’s high fuel prices.
Main beam with international standard interfaces, compatible with 40ft/20ft containers/non-standard boxes, switching port/inland transport.
Standard thick multi-leaf spring (air suspension optional), 20% longer shock stroke, <0.3% precision cargo damage for safe long-distance travel.

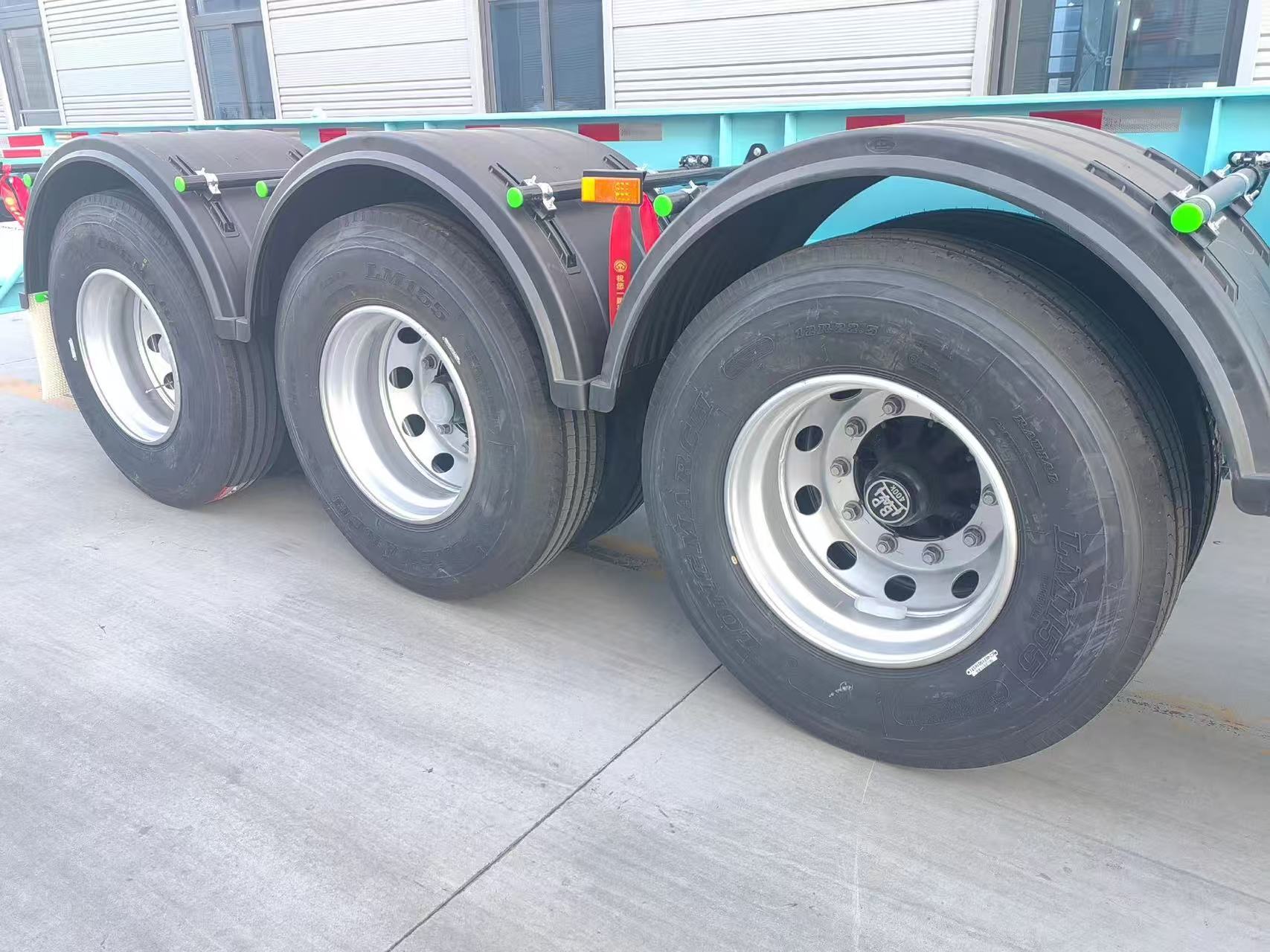

Alloy axles (30% higher wear resistance via heat treatment) + large ventilated brake drums (35% better heat dissipation), resisting high temps & brake fading.
Short wheelbase + precise steering, easy reversing for African irregular sites, suitable for new/experienced drivers, reducing accidents.

Dimension(Optional)	Axle No.	Rated Load (Kg)	Tire No.		Tire Size
20ft	2	40000	8		825R20 1000R20 1100R20 1200R20 12R22.5
40ft 45ft 48ft 53ft	3	60000	12
40ft 45ft 48ft 53ft	4	75000	16

Wheel Base (Mm)	1310
Leaf-Spring Pcs	10
Axle	13/16/18 T
Suspension	Heavy Duty Mechanic Suspension With Leaf Springs
Main Beam Material	Q345B Manganese Plates, Automatic Submerged Arc Welded
Brake System	Dual Line Braking System With Automatic Braking System/Chambers
Brake Air Chamber	Double Model
Kingpin	2′ Or 3.5′ Interchangeable

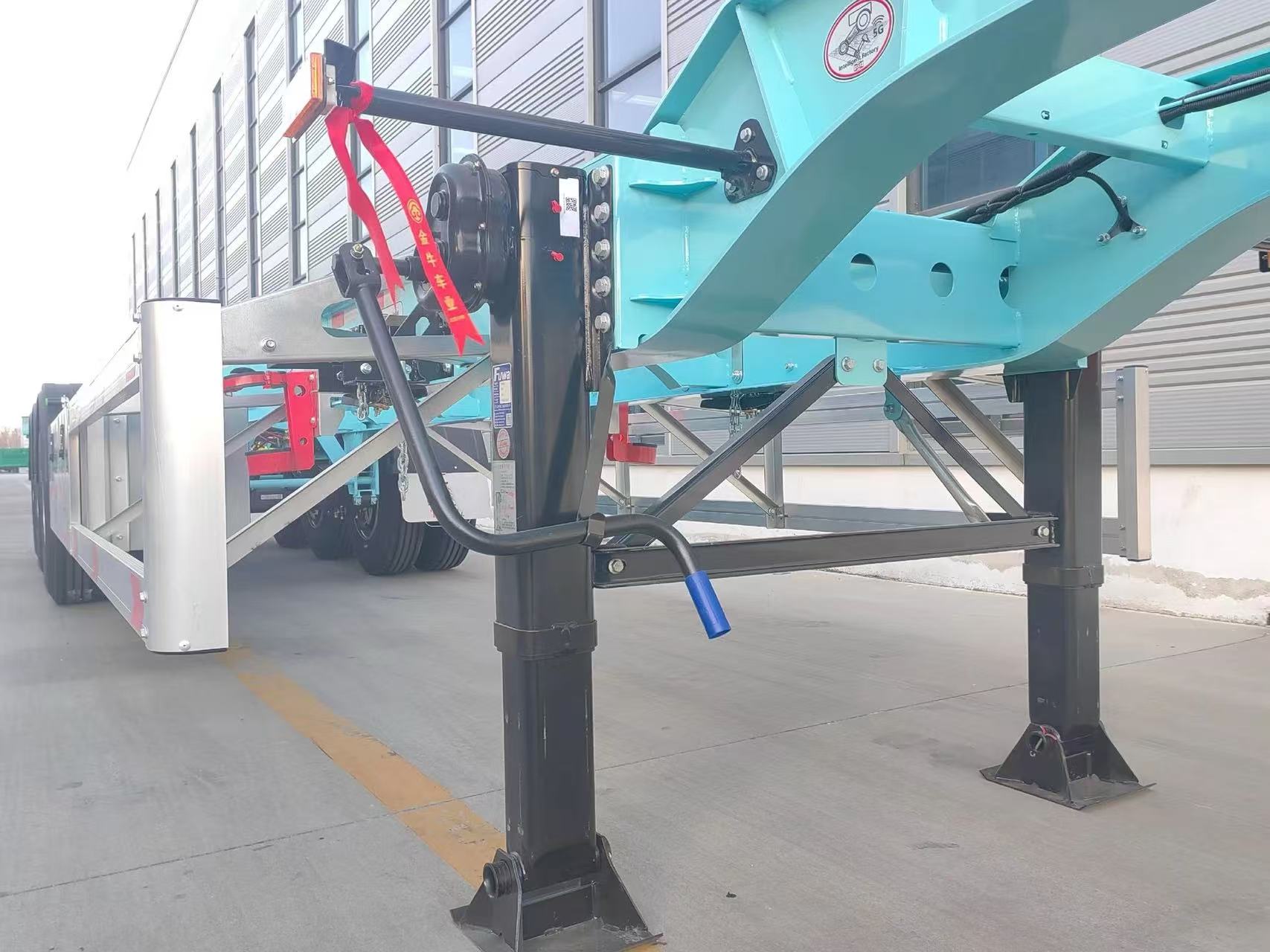

Landing Gear	28T Loading Capacity With 80T Static Lifting Capacity.

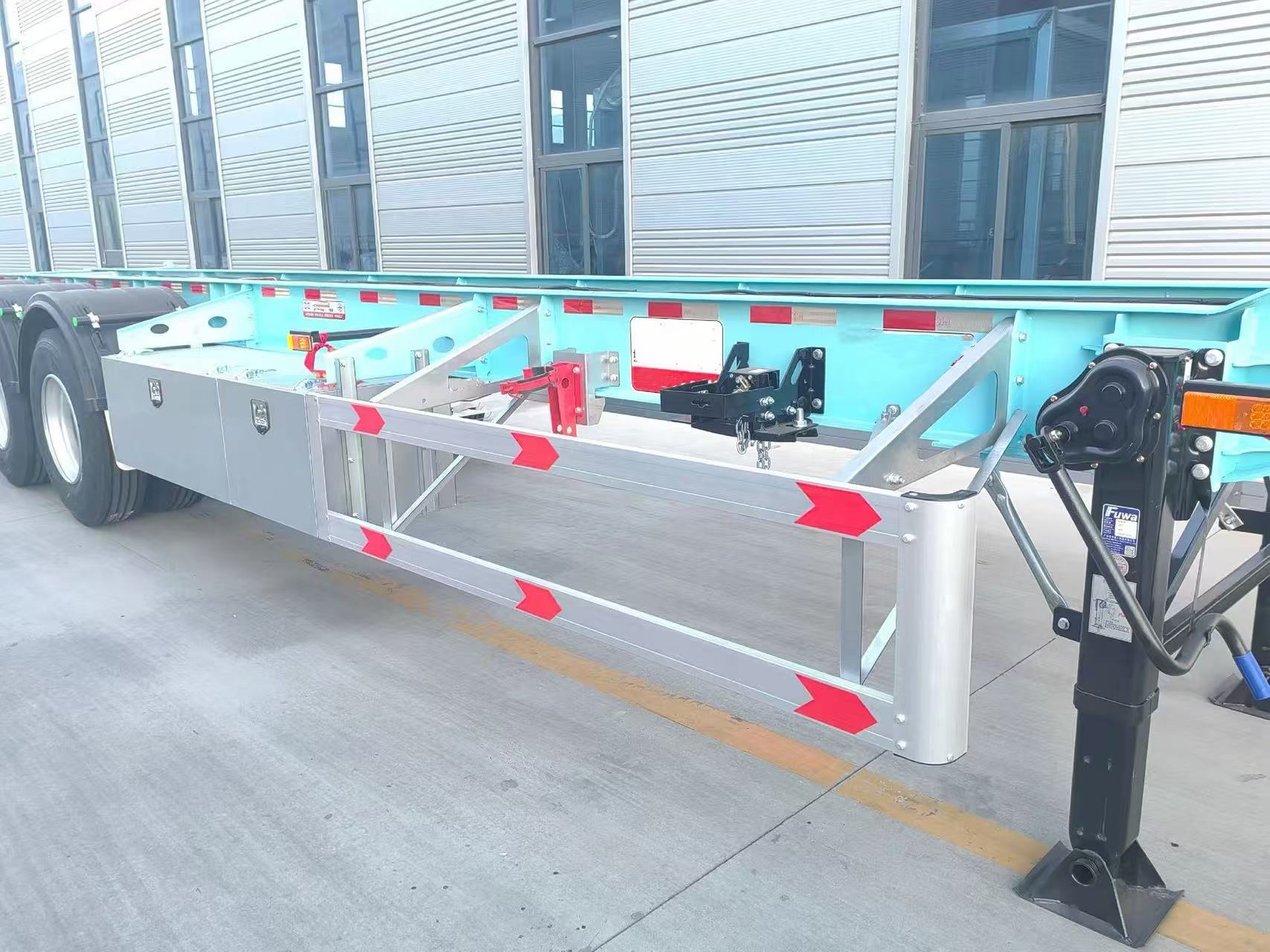

Platform	Skeletal Chassis Loading Deck
Brake System	Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber	Four Double And Two Single Chamber
Electrical System	24V, 7core Socket, Lights According To European Standards.
Mainbeam Size	Upper Plate			14mm
	Lower Plate			16mm
	Mid Web			8 Mm
	Height			500-520mm
Tool Box	1 Box Of Standard Tools
Spare Tire Carrier	2 Sets
Color And Logo	Depends On The Buyer’s Requirement.
Pin Height	According To The Height Of The Tractor Saddle.
Painting	Three Coats Painting; Any Color Will Be Available
Other Specifications	The Frame Can Be Flat Plate Style And Skeleton Style.Twist Lock Settings Installed 12 Pics, 8 Pics, And 4pcs To Satisfy The Containers With Different Sizes For Convince.
Application	For 2x20ft Or 1x40ft Containers Transport
