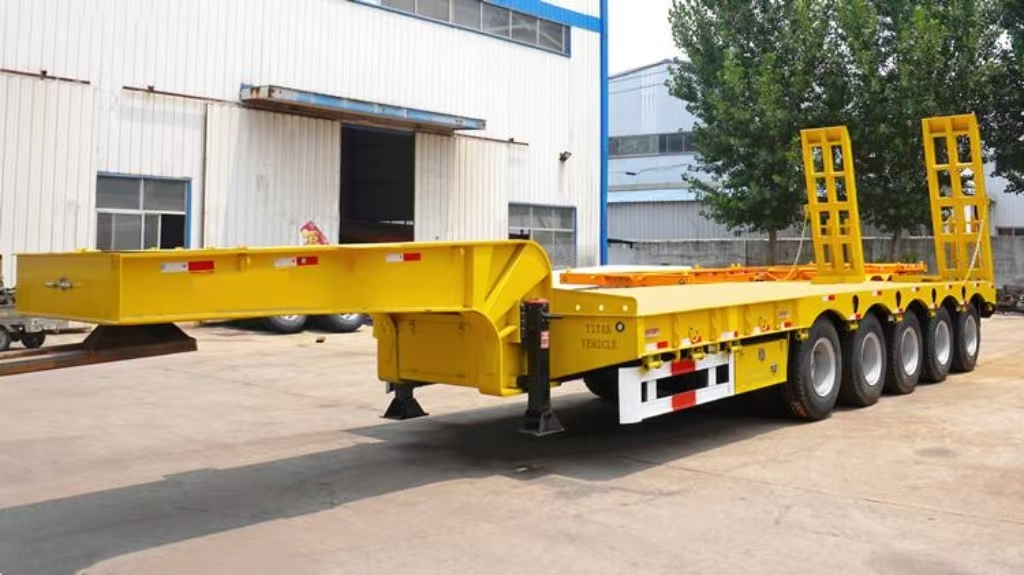

5 Axles Lowbed Semi Trailer

半挂车

自卸车

牵引车

Leave Your Message

5-axle super load-bearing capacity, with rated load exceeding the upper limit of multi-axle models, suitable for transporting extra-heavy equipment (such as large shield machines, giant transformers)
Dense multi-axle load distribution minimizes road pressure, enabling smooth passage on complex road conditions (like rural dirt roads, mining access roads)
Low-bed structure + 5-axle balanced layout provides more stable body support when loading/unloading extra-wide/extra-long/extra-high heavy cargo, avoiding the risk of cargo tilting
Precisely optimized axle spacing delivers far better anti-roll and anti-torsion performance than models with fewer axles during driving, ensuring safer transportation in severe weather (strong winds, heavy rains)
Within the compliant load range, it can accommodate the transportation of extra-large components, meeting the logistics needs of major projects such as wind power, nuclear power, and infrastructure

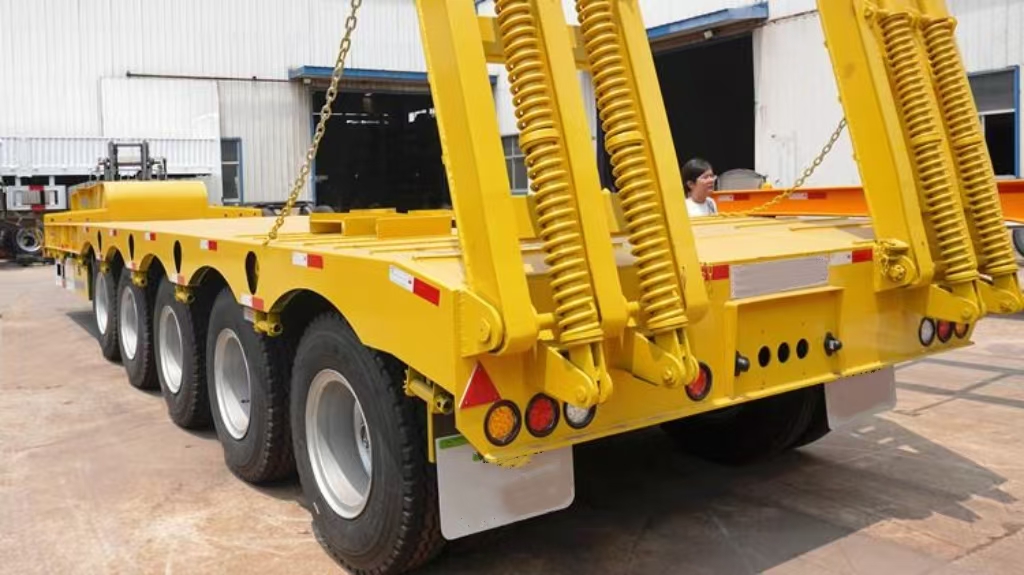

Supports customization of multiple sets of hydraulic outriggers + lifting decks, adapting to the loading/unloading of heavy cargo at different heights, with much higher operational flexibility than conventional semi-trailers
5-axle linked braking + ABS anti-lock braking system ensures faster braking response and more uniform braking force under heavy load, shortening the braking distance in emergency situations

Model
Dimension(Optional)	Axle No.	Rated Load (kg)	Tire No.		Tire Size

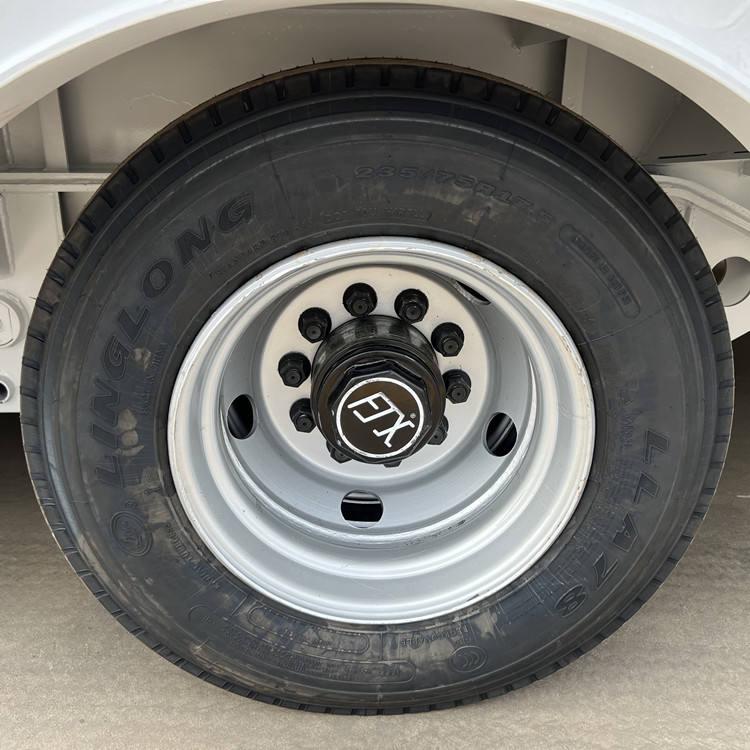

Dimension Made by Customer Machine Size, Standard Length is 13500mm (contact supplier for more)	1	20	4		825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier)
	2	40	8
	3	60	12
	4	80	16
	5	100	20

Wheel Base (mm)	1310
leaf-spring Pcs	10
Axle	13/16/18 T

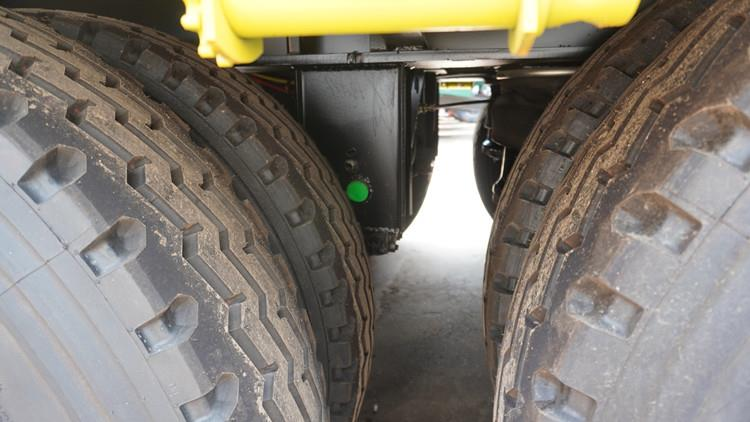

Suspension	Heavy Duty Mechanic Suspension with Leaf Springs
Main Beam Material	Q345B manganese plates, automatic submerged arc welded
Brake System	Dual line braking system with automatic braking system/chambers
Brake Air Chamber	Double Model
Kingpin	2′ or 3.5′ Interchangeable
Platform	4-6 mm diamond steel plate
Brake System	Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber	Four double and two single chamber
Electrical System	24V, 7core socket, lights according to European standards.
Mainbeam Size	Upper plate			14mm
	Lower plate			16mm
	Mid Web			8 mm
	Height			500-520mm
Spare tire carrier	2 sets
Color and Logo	Depends on the buyer’s requirement.
Pin Height	According to the height of the tractor saddle.
